Equipment Screens

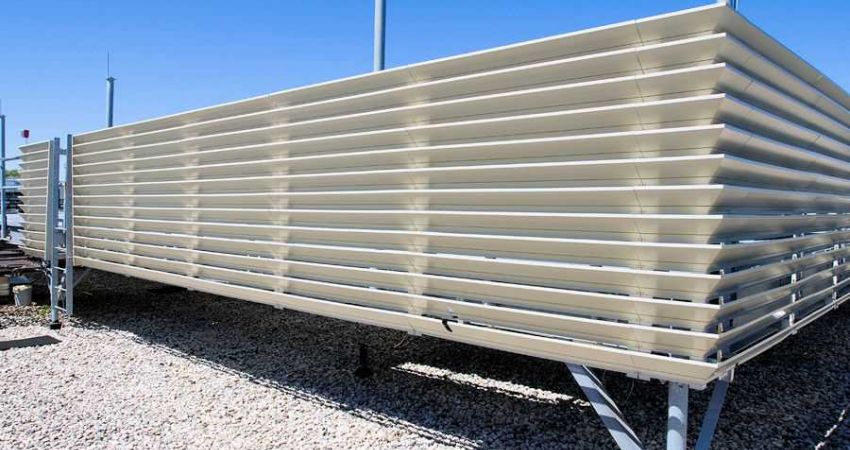

Louvered roof equipment screens conceal HVAC units, generators, and other rooftop equipment from sight while letting air move freely. Standard mount to structural framing, prefab Sturdistruct® framing, or direct mount to the air handler.
Three ways to attach an equipment screen.

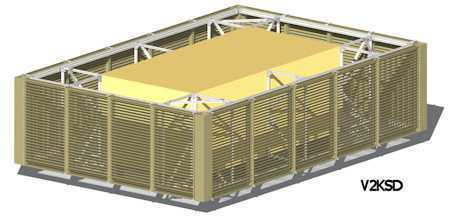

Direct Mount
Framing attaches directly to the air handler. No roof penetrations. Hinged louvered doors for service access.
Sturdistruct® Framing
Prefab all-aluminum roof framing system designed for our standard-mount screens. Penetrations through roof membrane.
Panels Only
Louver panels for attachment to structural framing by others. Use our structural framing guidelines to design supports.
Models
Inverted standard blade
Our base equipment screen. Hides rooftop HVAC from any ground sight line.
Inverted narrow blade (3", 4", or 5" spacing)
Highest free area equipment screen, lowest wind load on framing.
Direct-mount inverted standard
Mounts directly to the air handler. Zero roof penetrations.
Sight-proof horizontal
Total visual screening from every angle, blades run horizontal.
CSI specifications: 10 82 00 Grilles & Screens · 08 92 00 Louvered Equipment Enclosures
Designing a rooftop screen?
Tell us the equipment, the roof structure, and the sight line — we'll size, frame, and quote the screen in one pass.
